EALC-001

Model

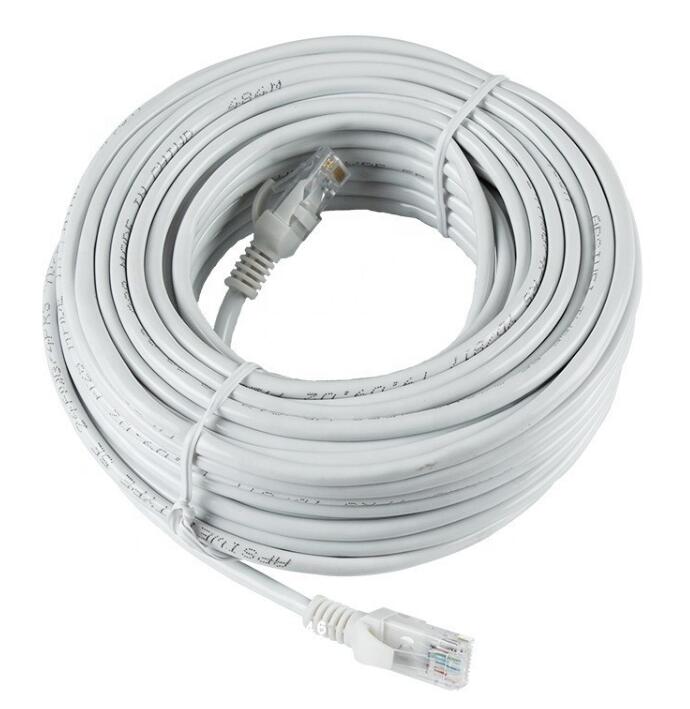

Cat5E UTP  Cable

Conductor Material

BC/CCA/CCS

Number Of Conductor

4P

Flammability Grade:

CMX,CM,MP,CMG,MPG,CMR,MPR

Indoor / Outdoor

Single jacket(PVC) / Double jacket(PVC+PE)

Insulation Thickness

1.03±0.03mm HDPE/LDPE

Number of pairs: 4 pairs

Pair1: Orange/White Orange     Pair2: Blue/ White Blue

Pair3: Green/ White Green        Pair4: Brown/White Brown

Jacket Material

PVC, ROHS PVC, LSZH PVC

DC Resistance(Max.)

9.5Ω/100m

DC Resistance Imbalance

2.50%

Working Capacitance(Max.)

5.4nF/100m

Insulation Resistance

10000MΩ.km

Transmission Velocity

65%

Operating Temperature

-20 °C - +75 °C

PVC Jacket Color

As client’s request.
