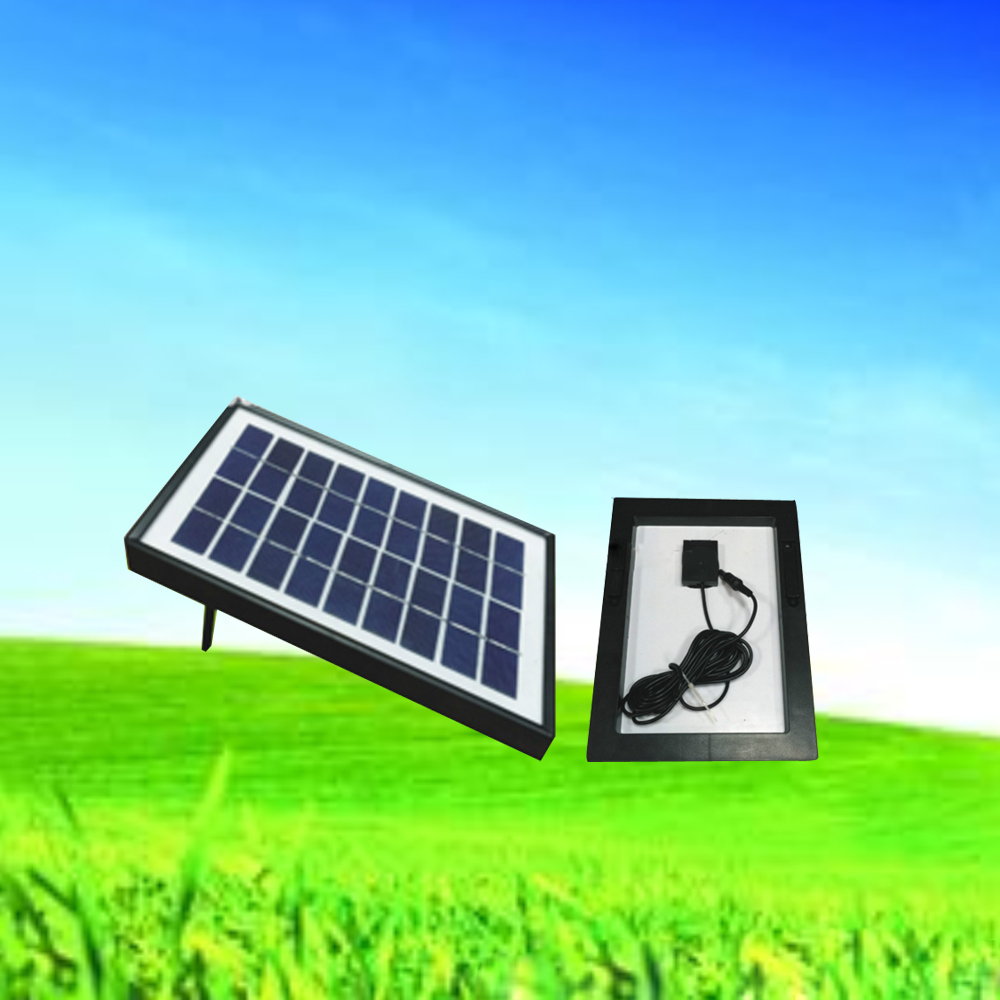

9.0V 3.0W Poly Solar Panel Glass Laminated Solar Panel Specification
Model No.: | 3W-9V |
Cell Type: | Polycrystalline |
Cell Efficiecy: | 16% |
Frame Material: | ABS Plastic Frame |
Power Tolerance: | +/-3% |
Max Output Power (Wmp): | 3.0W |
Max Power Voltage (Vmp): | 9.0V |
Max Power Current (Imp): | 335mA |
Open Circuit Voltage (Voc) | 10.5V |
Short Circuit Current (Isc): | 355mA |
System Voltage: | 6VDC |
Dimension: | 165*225*17mm |
Accessories: | Junction box (water-proof) 3M wire with DC pulg |
