EGCL-04

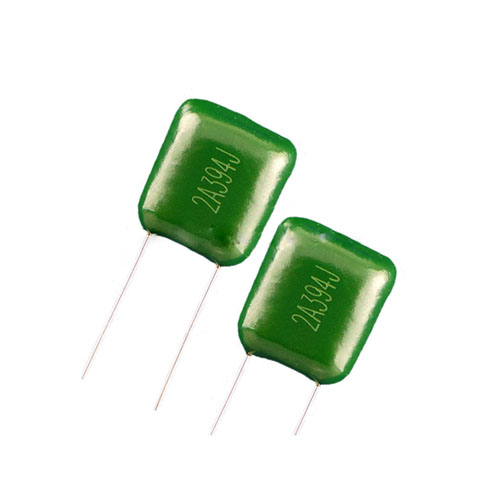

Polyester foil film cl11 capacitor



SPECIFITION:

Reference Standards:

GB6346 (IEC60 384-11)

Rated Voltage(UR):

50VD; 100VDC;250VDC;400VDC;630VDC;1000VDC;1250VDC

Climate Category

55/105/21

Rated Temperature

85¡ãC

Operation Temperature Range:

-40¡ãC - +105¡ãC(+85¡ãC to +105¡ãC, decreasing factor 1.25% per¡ãC for VR (dc))

Capacitance Range:

0.001¦ÌF ¨C 0.47¦ÌF

Capacitance Tolerance Range:

J(¡À5%);K(¡À10%);M(¡À20%)

Dielectric:

Polyester Film

Dissipation Factor Tan¦Ä:

¡Ü1.0% (20¡ãC 1 KHz)

Insulation Resistance(Between Terminals):

CR¡Ü0.1µF   ¡Ý30000M¦¸

CR>0.1µF   ¡Ý10000M¦¸

(20¡À5¡ãC 1Min)

Withstand Voltage:

2UR(5S)



Life. Test Conditions:

85¡À2¡ãC,1.25UR,1,000Hours

Capacitance Drift: ¡Ü¡À5% of The Initial Value

Dissipation Factor       C>1¦ÌF ¡Ü3% (1KHz)
