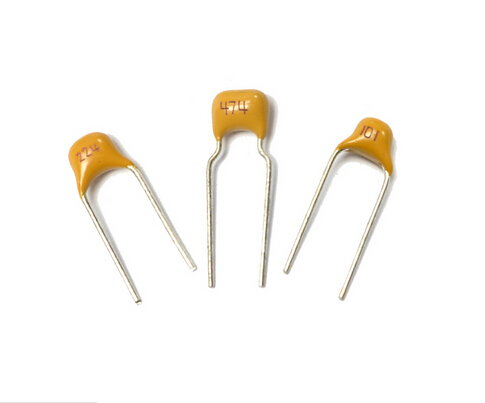

Multilayer Ceramic Capacitor



Key Specifications/Special Features:

• Capacitance range: 0R5-104 Insulation resistance: C <=10nF R >=10,000MQC >=10nF C R>=100S
• Withstanding voltage: 2.5 times of working voltage
• Dissipation factor: 0.15% maximum (20 degrees Celsius, 1MHz, 1V DC) Rated voltage: 25, 50, 63 and 100V DC
• Capacitance tolerance: B = +-0.1PF, C = +-0.25PF and D = +-0.5PF F = +-1%, G = +-2%, J = +-5%, K = +-10% and M = +-20%
• Life test: 200% rated voltage at +125 degrees Celsius 1,000 hours
• Solderability: SJ/10211-91 4.11 ,Resistance to soldering heat: SJ/T10211-91 4.10 Mechanical test: SJ/T10211-91 4.9 ,Temperature cycling: SJ/T10211-91 4.12 ,Moisture resistance: SJ/T10211-91 4.14 ,Termination adhesion strength: SJ/T10211-91 4.9 ,Environment testing: SJ/T10211-91 4.13
• Characteristics :Tape and reel available for auto placement, Various lead spacings are available .
